- MLQ-4T
Description
Extra long reach carbide end mill with four flutes, overall length 75mm to 125mm, it can be up to HRC 48-50.

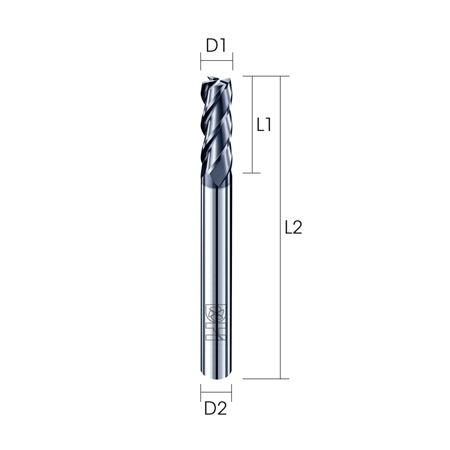

| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|
| D1 | L1 | L2 | D2 | |
| MLQ-0104 | 1.0 | 5 | 75 | 4 |
| MLQ-0154 | 1.5 | 8 | 75 | 4 |
| MLQ-0204 | 2.0 | 10 | 75 | 4 |
| MLQ-0304 | 3.0 | 15 | 75 | 4 |
| MLQ-0404 | 4.0 | 20 | 75 | 4 |
| MLQ100-0404 | 4.0 | 20 | 100 | 4 |
| MLQ-0504 | 5.0 | 25 | 75 | 6 |
| MLQ-0604 | 6.0 | 30 | 75 | 6 |
| MLQ-0804 | 8.0 | 40 | 100 | 8 |
| MLQ-1004 | 10.0 | 40 | 100 | 10 |
| MLQ-1204 | 12.0 | 50 | 100 | 12 |
| MLQ-1404 | 14.0 | 60 | 125 | 14 |
| MLQ-1604 | 16.0 | 65 | 125 | 16 |
| MLQ-2004 | 20.0 | 65 | 125 | 20 |
