MQ75/100/150-4T

Carbide End Mill
MQ75/100/150-4T
MQ75/100/150-4T

Square End Mills (Long Shank)

  • MG
  • 0.6
  • 35
  • 4
  • HRC48
  • 90
  • TiAIN F
  • P1-4
  • M1-2
  • K1-2
  • N1,2,5

Description

Long shank carbide end mill with two flutes, overall length 75mm to 150mm, it can be up to HRC 48-50.

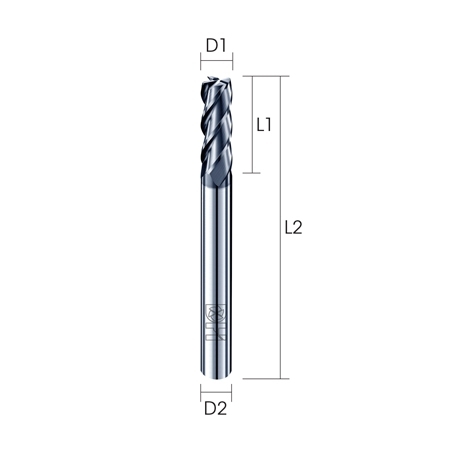

Type No. Diameter Flute Length O.A.L Shank Diameter
D1 L1 L2 D2
MQ75-0404 4.0 12 75 4
MQ100-0504 5.0 15 100 6
MQ100-0604 6.0 20 100 6
MQ100-0804 8.0 25 100 8
MQ100-1004 10.0 30 100 10
MQ100-1204 12.0 35 100 12
MQ150-1604 16.0 40 150 16
MQ150-2004 20.0 50 150 20
