Description
Super extra long carbide end mill with four flutes, overall length from 75mm to 150mm, it can be up to HRC 48-50.

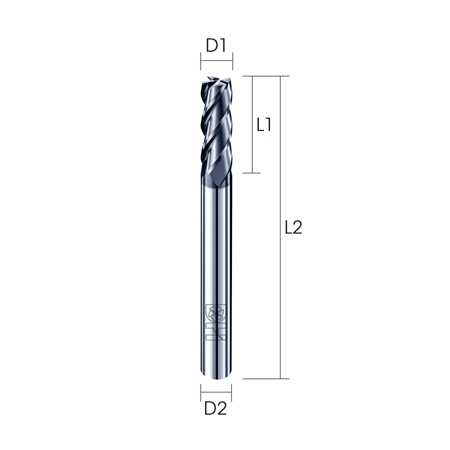

| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|
| D1 | L1 | L2 | D2 | |
| MFQ-0304 | 3.0 | 15 | 75 | 6 |
| MFQ-0404 | 4.0 | 20 | 75 | 6 |
| MFQ-0504 | 5.0 | 25 | 100 | 6 |
| MFQ-0604 | 6.0 | 30 | 100 | 6 |
| MFQ150-0604 | 6.0 | 30 | 150 | 6 |
| MFQ-0804 | 8.0 | 40 | 150 | 8 |
| MFQ-1004 | 10.0 | 40 | 150 | 10 |
| MFQ-1204 | 12.0 | 50 | 150 | 12 |
| MFQ-1404 | 14.0 | 50 | 150 | 16 |
| MFQ-1604 | 16.0 | 70 | 150 | 16 |
| MFQ-2004 | 20.0 | 80 | 150 | 20 |
