Description
Choose High Helix End Mill - 45° Helix Square for faster chip removal and a better finish in aluminum alloys and non-ferrous materials! 45° high helix carbide end mill with three flutes, it can be up to HRC 48-50.

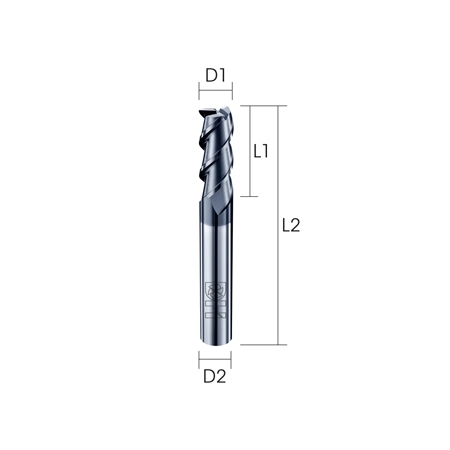

| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|
| D1 | L1 | L2 | D2 | |
| MTQ-0203 | 2.0 | 6 | 50 | 4 |
| MTQ-0303 | 3.0 | 8 | 50 | 4 |
| MTQ-0403 | 4.0 | 11 | 50 | 4 |
| MTQ6D-0203 | 2.0 | 6 | 50 | 6 |
| MTQ6D-0303 | 3.0 | 8 | 50 | 6 |
| MTQ6D-0403 | 4.0 | 11 | 50 | 6 |
| MTQ-0503 | 5.0 | 13 | 50 | 6 |
| MTQ-0603 | 6.0 | 16 | 50 | 6 |
| MTQ-0803 | 8.0 | 20 | 60 | 8 |
| MTQ-1003 | 10.0 | 25 | 75 | 10 |
| MTQ-1203 | 12.0 | 30 | 75 | 12 |
| MTQ-1403 | 14.0 | 40 | 100 | 16 |
| MTQ-1603 | 16.0 | 40 | 100 | 16 |
| MTQ-2003 | 20.0 | 42 | 100 | 20 |
