Description
Choose High Helix End Mill - 45° Helix Square for faster chip removal and a better finish in aluminum alloys and non-ferrous materials! 45° high helix carbide end mill with four flutes, it can be up to HRC 48-50.

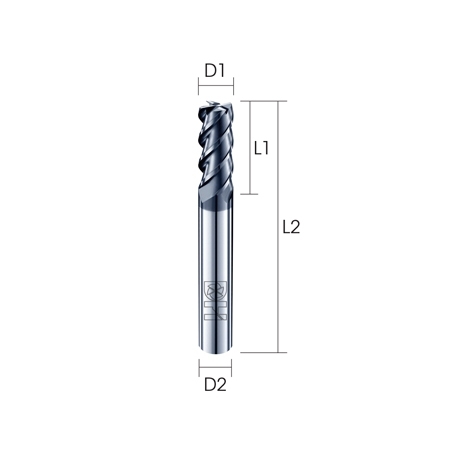

| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|
| D1 | L1 | L2 | D2 | |
| MTQ-0104 | 1.0 | 3 | 50 | 4 |
| MTQ-0154 | 1.5 | 4 | 50 | 4 |
| MTQ-0204 | 2.0 | 6 | 50 | 4 |
| MTQ-0254 | 2.5 | 7 | 50 | 4 |
| MTQ-0304 | 3.0 | 8 | 50 | 4 |
| MTQ-0354 | 3.5 | 10 | 50 | 4 |
| MTQ-0404 | 4.0 | 11 | 50 | 4 |
| MTQ6D-0304 | 3.0 | 8 | 50 | 6 |
| MTQ6D-0404 | 4.0 | 11 | 50 | 6 |
| MTQ6D-0504 | 5.0 | 13 | 50 | 6 |
| MTQ-0604 | 6.0 | 16 | 50 | 6 |
| MTQ-0804 | 8.0 | 20 | 60 | 8 |
| MTQ-1004 | 10.0 | 25 | 75 | 10 |
| MTQ-1204 | 12.0 | 30 | 75 | 12 |
| MTQ-1404 | 14.0 | 40 | 100 | 16 |
| MTQ-1604 | 16.0 | 40 | 100 | 16 |
| MTQ-2004 | 20.0 | 42 | 100 | 20 |
