Description
DH Ball Long Shank End Mills are ideal for milling deep ... Long flute and long shank design for deep cavities.

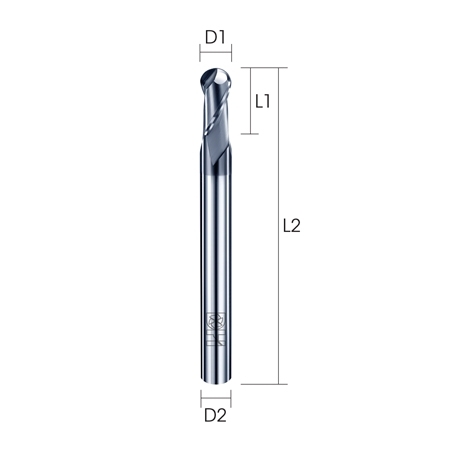

Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
---|---|---|---|---|
D1 | L1 | L2 | D2 | |
MB75-0102 | 1.0 / 0.5R | 2 | 75 | 4 |
MB75-0152 | 1.5 / 0.75R | 3 | 75 | 4 |
MB75-0202 | 2.0 / 1R | 4 | 75 | 4 |
MB75-0302 | 3.0 / 1.5R | 6 | 75 | 4 |
MB75-0402 | 4.0 / 2R | 8 | 75 | 4 |
MB75-0502 | 5.0 / 2.5R | 10 | 75 | 6 |
MB75-0602 | 6.0 / 3R | 12 | 75 | 6 |
MB75-0802 | 8.0 / 4R | 16 | 75 | 8 |
MB100-0802 | 8.0 / 4R | 16 | 100 | 8 |
MB100-1002 | 10.0 / 5R | 20 | 100 | 10 |
MB100-1202 | 12.0 / 6R | 24 | 100 | 12 |
MB150-1402 | 14.0 / 7R | 28 | 150 | 16 |
MB150-1602 | 16.0 / 8R | 32 | 150 | 16 |
MB150-2002 | 20.0 / 10R | 40 | 150 | 20 |
