MB100/150-2T

Carbide End Mill
MB100/150-2T
MB100/150-2T

Ball Nose End Mills (Long Shank)

  • MG
  • 0.6
  • 30
  • 2
  • HRC48
  • ball nose
  • TiAIN F
  • P1-4
  • M1-2
  • K1-2
  • N1-3
Add Inquiry

Description

DH Ball Long Shank End Mills are ideal for milling deep ... Long flute and long shank design for deep cavities.

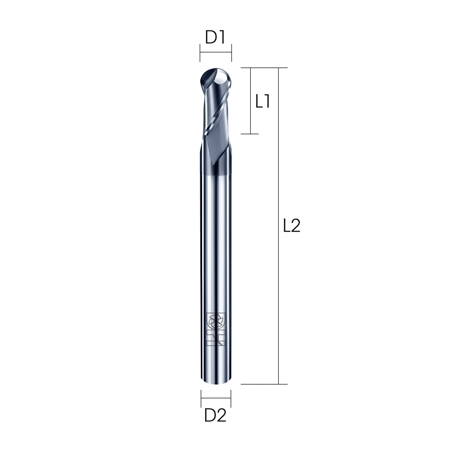

Type No. Diameter Flute Length O.A.L Shank Diameter
D1 L1 L2 D2
MB100-0202 2.0 / 1R 4 100 6
MB100-0302 3.0 / 1.5R 6 100 6
MB100-0402 4.0 / 2R 8 100 4
MB100D6-0402 4.0 / 2R 8 100 6
MB100-0502 5.0 / 2.5R 10 100 6
MB100-0602 3.0 / 3R 12 100 6
MB150-0802 8.0 / 4R 16 150 8
MB150-1002 10.0 / 5R 20 150 10
MB150-1202 12.0 / 6R 24 150 12
