MCV-2T

Carbide End Mill
MCV-2T
MCV-2T

Corner Radius End Mills

  • MG
  • 0.6
  • 35
  • 2
  • HRC48
  • R
  • TiAIN F
  • P1-4
  • M1-2
  • K1-2
  • N1-3
Add Inquiry

Description

DH Tools' Corner Radius End Mills are excellent for breaking edges and putting a smooth radius on a part.

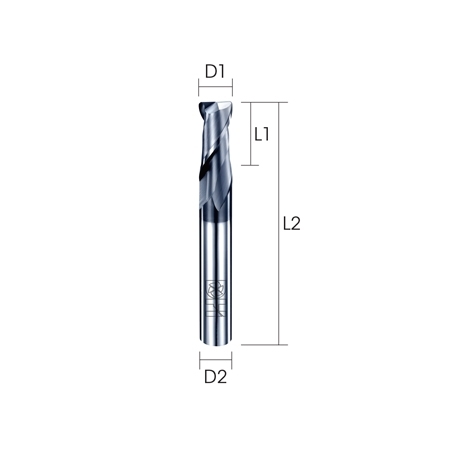

Type No. Diameter Flute Length O.A.L Shank Diameter
D1 L1 L2 D2
MCV-02022 2.0 / R0.2 6 50 4
MCV-02032 2.0 / R0.3 6 50 4
MCV-02052 2.0 / R0.5 6 50 4
MCV-025022 2.5 / R0.2 7 50 4
MCV-025032 2.5 / R0.3 7 50 4
MCV-02022 1.0 / R0.2 6 50 4
MCV-025052 2.5 / R0.5 7 50 4
MCV-03022 3.0 / R0.2 8 50 4
MCV-03032 3.0 / R0.3 8 50 4
MCV-03052 3.0 / R0.5 8 50 4
MCV-03102 3.0 / R1 8 50 4
MCV-04022 4.0 / R0.2 10 50 4
MCV-04032 4.0 / R0.3 10 50 4
MCV-040522 4.0 / R0.5 10 50 4
MCV-04102 4.0 / R1 10 50 4
MCV-05022 5.0 / R0.2 13 50 6
MCV-05032 5.0 / R0.3 13 50 6
MCV-05052 5.0 / R0.5 13 50 6
MCV-05102 5.0 / R1 13 50 6
MCV-06022 6.0 / R0.2 15 50 6
MCV-06032 6.0 / R0.3 15 50 6
MCV-06052 6.0 / R0.5 15 50 6
MCV-06102 6.0 / R1 15 50 6
MCV-06152 6.0 / R1.5 15 50 6
MCV-06202 6.0 / R2 15 50 6
MCV-08032 8.0 / R0.3 20 60 8
MCV-08052 8.0 / R0.5 20 60 8
MCV-08102 8.0 / R1 20 60 8
MCV-08152 8.0 / R1.5 20 60 8
MCV-08202 8.0 / R2 20 60 8
MCV-08302 8.0 / R3 20 60 8
MCV-10032 10.0 / R0.3 25 75 10
MCV-10052 10.0 / R0.5 25 75 10
MCV-10102 10.0 / R1 25 75 10
MCV-10152 10.0 / R1.5 25 75 10
MCV-10202 10.0 / R2 25 75 10
MCV-10302 10.0 / R3 25 75 10
MCV-12032 12.0 / R0.3 30 75 12
MCV-12052 12.0 / R0.5 30 75 12
MCV-12102 12.0 / R1 30 75 12
MCV-12152 12.0 / R1.5 30 75 12
MCV-12202 12.0 / R2 30 75 12
MCV-12302 12.0 / R3 30 75 12
