Description
Solid carbide end mill with two flutes, it can be up to HRC 48-50, from Ø1 to Ø20.

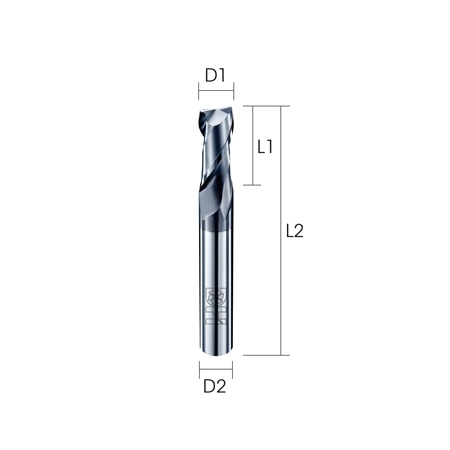

| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|
| D1 | L1 | L2 | D2 | |
| MQ-0102 | 1.0 | 3 | 50 | 4 |
| MQ-0152 | 1.5 | 4 | 50 | 4 |
| MQ-0202 | 2.0 | 6 | 50 | 4 |
| MQ-0252 | 2.5 | 7 | 50 | 4 |
| MQ-0302 | 3.0 | 8 | 50 | 4 |
| MQ-0352 | 3.5 | 10 | 50 | 4 |
| MQ-0402 | 4.0 | 11 | 50 | 4 |
| MQ-0452 | 4.5 | 12 | 50 | 6 |
| MQ-0502 | 5.0 | 14 | 50 | 6 |
| MQ-0552 | 5.5 | 16 | 50 | 6 |
| MQ-0602 | 6.0 | 16 | 50 | 6 |
| MQ-0652 | 6.5 | 18 | 60 | 8 |
| MQ-0702 | 7.0 | 18 | 60 | 8 |
| MQ-0752 | 7.5 | 20 | 60 | 8 |
| MQ-0802 | 8.0 | 20 | 60 | 8 |
| MQ-0852 | 8.5 | 22 | 75 | 10 |
| MQ-0902 | 9.0 | 22 | 75 | 10 |
| MQ-0952 | 9.5 | 25 | 75 | 10 |
| MQ-1002 | 10.0 | 25 | 75 | 10 |
| MQ-1052 | 10.5 | 28 | 75 | 12 |
| MQ-1102 | 11.0 | 28 | 75 | 12 |
| MQ-1152 | 11.5 | 30 | 75 | 12 |
| MQ-1202 | 12.0 | 30 | 75 | 12 |
| MQ-1302 | 13.0 | 40 | 100 | 16 |
| MQ-1402 | 14.0 | 40 | 100 | 16 |
| MQ-1502 | 15.0 | 40 | 100 | 16 |
| MQ-1602 | 16.0 | 40 | 100 | 16 |
| MQ-2002 | 20.0 | 40 | 100 | 20 |
