- MG Series End Mill
- MALB-2T
Description
End Mills for aluminum alloys copper, brass, and bronze alloys. - 30° Helix - Ball.
| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|

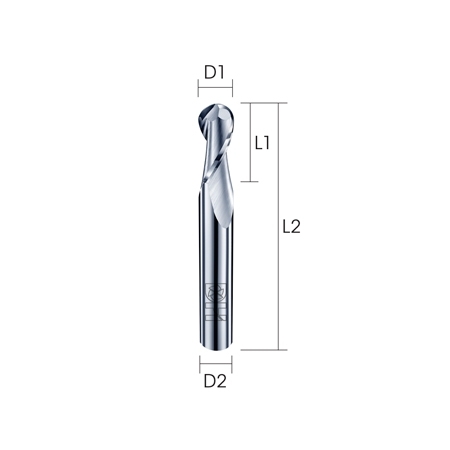

| D1 | L1 | L2 | D2 | |
| MALB3D-0102 | 1.0 / 0.5R | 3 | 38 | 3 |
| MALB3D-0152 | 1.5 / 0.75R | 5 | 38 | 3 |
| MALB3D-0202 | 2.0 / 1R | 6 | 38 | 3 |
| MALB3D-0302 | 3.0 / 1.5R | 9 | 38 | 3 |
| MALB-0102 | 1.0 / 0.5R | 3 | 50 | 4 |
| MALB-0152 | 1.5 / 0.75R | 5 | 50 | 4 |
| MALB-0202 | 2.0 / 1R | 6 | 50 | 4 |
| MALB-0302 | 3.0 / 1.5R | 9 | 50 | 4 |
| MALB-0402 | 4.0 / 2R | 14 | 50 | 4 |
| MALB-0502 | 5.0 / 2.5R | 16 | 50 | 5 |
| MALB-0602 | 6.0 / 3R | 20 | 63 | 6 |
| MALB-0802 | 8.0 / 4R | 20 | 63 | 8 |
| MALB-1002 | 10.0 / 5R | 22 | 75 | 10 |
| MALB-1202 | 12.0 / 6R | 26 | 75 | 12 |
| MALB-1402 | 14.0 / 7R | 32 | 90 | 14 |
| MALB-1602 | 16.0 / 8R | 32 | 100 | 16 |
