- SMG Series End Mill
- SQ75/100/150-2T

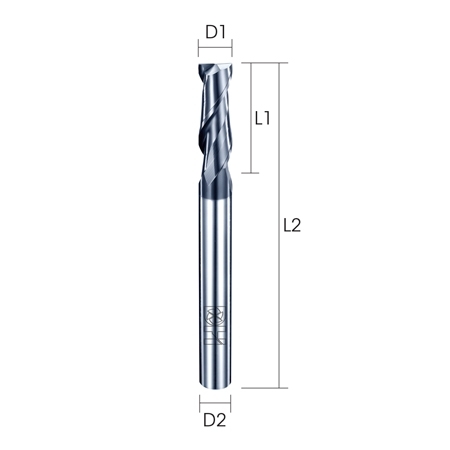

| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|
| D1 | L1 | L2 | D2 | |
| SQ75-0202 | 2.0 | 6 | 75 | 4 |
| SQ75-0302 | 3.0 | 9 | 75 | 4 |
| SQ75-0402 | 4.0 | 12 | 75 | 4 |
| SQ100-0502 | 5.0 | 15 | 100 | 6 |
| SQ100-0602 | 6.0 | 20 | 100 | 6 |
| SQ100-0802 | 8.0 | 25 | 100 | 8 |
| SQ100-1002 | 10.0 | 30 | 100 | 10 |
| SQ100-1202 | 12.0 | 35 | 100 | 12 |
| SQ150-1602 | 16.0 | 40 | 150 | 16 |
| SQ150-2002 | 20.0 | 50 | 150 | 20 |
