- SMG Series End Mill
- STQ-3T

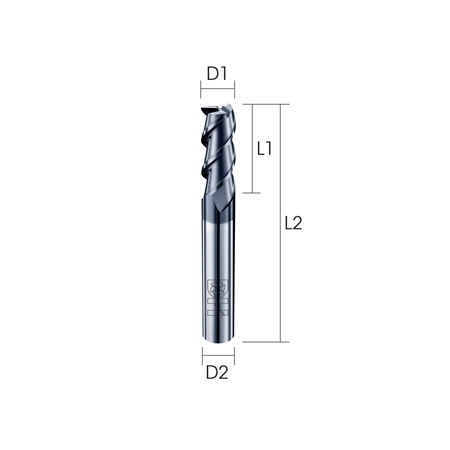

| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|
| D1 | L1 | L2 | D2 | |
| STQ-0203 | 2.0 | 6 | 50 | 4 |
| STQ-0303 | 3.0 | 8 | 50 | 4 |
| STQ-0403 | 4.0 | 11 | 50 | 4 |
| STQ6D-0203 | 2.0 | 6 | 50 | 6 |
| STQ6D-0303 | 3.0 | 8 | 50 | 6 |
| STQ6D-0403 | 4.0 | 11 | 50 | 6 |
| STQ-0503 | 5.0 | 13 | 50 | 6 |
| STQ-0603 | 6.0 | 16 | 50 | 6 |
| STQ-0803 | 8.0 | 20 | 60 | 8 |
| STQ-1003 | 10.0 | 25 | 75 | 10 |
| STQ-1203 | 12.0 | 30 | 75 | 12 |
| STQ-1403 | 14.0 | 40 | 100 | 16 |
| STQ-1603 | 16.0 | 40 | 100 | 16 |
| STQ-2003 | 20.0 | 42 | 100 | 20 |
