| Type No. |
Diameter |
Flute Length |
O.A.L |
Shank Diameter |

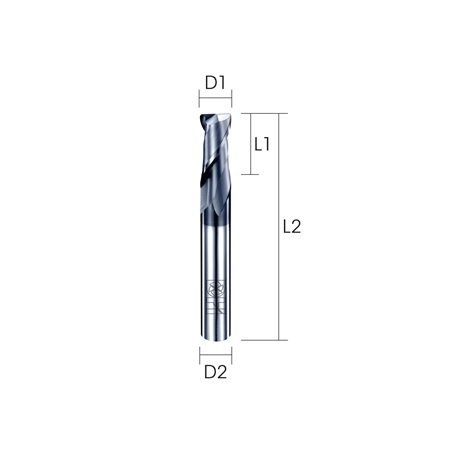

| D1 |
L1 |
L2 |
D2 |
| SCV-01022 |
1.0 / R0.2 |
3 |
50 |
4 |
| SCV-01032 |
1.0 / R0.3 |
3 |
50 |
4 |
| SCV-015022 |
1.5 / R0.2 |
4 |
50 |
4 |
| SCV-015032 |
1.5 / R0.3 |
4 |
50 |
4 |
| SCV-015052 |
1.5 / R0.5 |
4 |
50 |
4 |
| SCV-02022 |
2.0 / R0.2 |
6 |
50 |
4 |
| SCV-02032 |
2.0 / R0.3 |
6 |
50 |
4 |
| SCV-02052 |
2.0 / R0.5 |
6 |
50 |
4 |
| SCV-025022 |
2.5 / R0.2 |
7 |
50 |
4 |
| SCV-025032 |
2.5 / R0.3 |
7 |
50 |
4 |
| SCV-025052 |
2.5 / R0.5 |
7 |
50 |
4 |
| SCV-03022 |
3.0 / R0.2 |
8 |
50 |
4 |
| SCV-03032 |
3.0 / R0.3 |
8 |
50 |
4 |
| SCV-03052 |
3.0 / R0.5 |
8 |
50 |
4 |
| SCV-03102 |
3.0 / R1 |
8 |
50 |
4 |
| SCV-04022 |
4.0 / R0.2 |
10 |
50 |
4 |
| SCV-04032 |
4.0 / R0.3 |
10 |
50 |
4 |
| SCV-04052 |
4.0 / R0.5 |
10 |
50 |
4 |
| SCV-04102 |
4.0 / R1 |
10 |
50 |
4 |
| SCV-05022 |
5.0 / R0.2 |
13 |
50 |
6 |
| SCV-05032 |
5.0 / R0.3 |
13 |
50 |
6 |
| SCV-05052 |
5.0 / R0.5 |
13 |
50 |
6 |
| SCV-05102 |
5.0 / R1 |
13 |
50 |
6 |
| SCV-06022 |
6.0 / R0.2 |
15 |
50 |
6 |
| SCV-06032 |
6.0 / R0.3 |
15 |
50 |
6 |
| SCV-06052 |
6.0 / R0.5 |
15 |
50 |
6 |
| SCV-06102 |
6.0 / R1 |
15 |
50 |
6 |
| SCV-06152 |
6.0 / R1.5 |
15 |
50 |
6 |
| SCV-06202 |
6.0 / R2 |
15 |
50 |
6 |
| SCV-08032 |
8.0 / R0.3 |
20 |
60 |
8 |
| SCV-08052 |
8.0 / R0.5 |
20 |
60 |
8 |
| SCV-08102 |
8.0 / R1 |
20 |
60 |
8 |
| SCV-08152 |
8.0 / R1.5 |
20 |
60 |
8 |
| SCV-08202 |
8.0 / R2 |
20 |
60 |
8 |
| SCV-08302 |
8.0 / R3 |
20 |
60 |
8 |
| SCV-10032 |
10.0 / R0.3 |
25 |
75 |
10 |
| SCV-10052 |
10.0 / R0.5 |
25 |
75 |
10 |
| SCV-10102 |
10.0 / R1 |
25 |
75 |
10 |
| SCV-10152 |
10.0 / R1.5 |
25 |
75 |
10 |
| SCV-10202 |
10.0 / R2 |
25 |
75 |
10 |
| SCV-10302 |
10.0 / R3 |
25 |
75 |
10 |
| SCV-12032 |
12.0 / R0.3 |
30 |
75 |
12 |
| SCV-12052 |
12.0 / R0.5 |
30 |
75 |
12 |
| SCV-12102 |
12.0 / R1 |
30 |
75 |
12 |
| SCV-12152 |
12.0 / R1.5 |
30 |
75 |
12 |
| SCV-12202 |
12.0 / R2 |
30 |
75 |
12 |
| SCV-12302 |
12.0 / R3 |
30 |
75 |
12 |
