SCV75/100-2T
Carbide End Mill
Corner Radius End Mills (Long Shank)

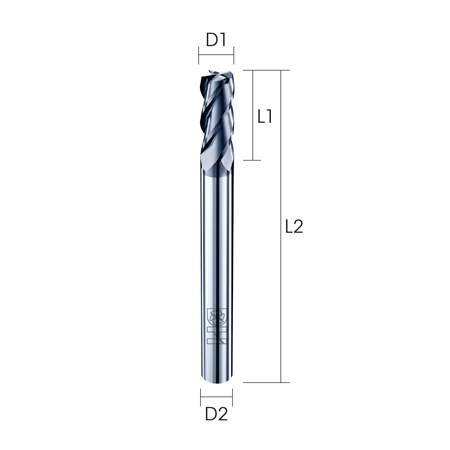

| Type No. |
Diameter |
Flute Length |
O.A.L |
Shank Diameter |
| D1 |
L1 |
L2 |
D2 |
| SCV75-06032 |
6.0 / R0.3 |
15 |
75 |
6 |
| SCV75-06052 |
6.0 / R0.5 |
15 |
75 |
6 |
| SCV100-06052 |
6.0 / R0.5 |
15 |
100 |
6 |
| SCV75-06102 |
6.0 / R1 |
15 |
75 |
6 |
| SCV75-06152 |
6.0 / R1.5 |
15 |
75 |
6 |
| SCV75-08032 |
8.0 / R0.3 |
20 |
75 |
8 |
| SCV75-08052 |
8.0 / R0.5 |
20 |
75 |
8 |
| SCV75-08102 |
8.0 / R1 |
20 |
75 |
8 |
| SCV75-08152 |
8.0 / R1.5 |
20 |
75 |
8 |
| SCV75-08202 |
8.0 / R2 |
20 |
75 |
8 |
| SCV100-10052 |
10.0 / R0.5 |
25 |
100 |
10 |
| SCV100-10102 |
10.0 / R1 |
25 |
100 |
10 |
| SCV100-10152 |
10.0 / R1.5 |
25 |
100 |
10 |
| SCV100-10202 |
10.0 / R2 |
25 |
75 |
10 |
| SCV100-10302 |
10.0 / R3 |
25 |
100 |
10 |
| SCV100-12052 |
12.0 / R0.5 |
30 |
100 |
12 |
| SCV100-12102 |
12.0 / R1 |
30 |
100 |
12 |
| SCV100-12152 |
12.0 / R1.5 |
30 |
100 |
12 |
| SCV100-12202 |
12.0 / R2 |
30 |
100 |
12 |
| SCV100-12302 |
12.0 / R3 |
30 |
100 |
12 |
