SCW75/100-4T
Carbide End Mill
Corner Radius End Mills (Long Shank)

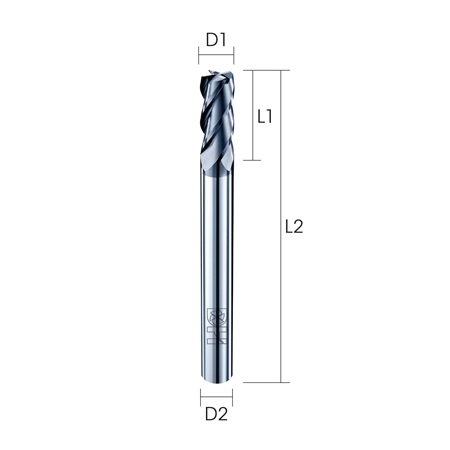

| Type No. |
Diameter |
Flute Length |
O.A.L |
Shank Diameter |
| D1 |
L1 |
L2 |
D2 |
| SCW75-06034 |
6.0 / R0.3 |
15 |
75 |
6 |
| SCW75-06054 |
6.0 / R0.5 |
15 |
75 |
6 |
| SCW100-06054 |
6.0 / R0.5 |
15 |
100 |
6 |
| SCW75-06104 |
6.0 / R1 |
15 |
75 |
6 |
| SCW100-06104 |
6.0 / R1 |
15 |
100 |
6 |
| SCW75-06154 |
6.0 / R1.5 |
15 |
75 |
6 |
| SCW75-06204 |
6.0 / R2 |
15 |
75 |
6 |
| SCW75-08034 |
8.0 / R0.3 |
20 |
75 |
8 |
| SCW75-08054 |
8.0 / R0.5 |
20 |
75 |
8 |
| SCW100-08054 |
8.0 / R0.5 |
20 |
100 |
8 |
| SCW75-08104 |
8.0 / R1 |
20 |
75 |
8 |
| SCW100-08104 |
8.0 / R1 |
20 |
100 |
8 |
| SCW75-08154 |
8.0 / R1.5 |
20 |
75 |
8 |
| SCW75-08204 |
8.0 / R2 |
20 |
75 |
8 |
| SCW100-10054 |
10.0 / R0.5 |
25 |
100 |
10 |
| SCW100-10104 |
10.0 / R1 |
25 |
100 |
10 |
| SCW100-10154 |
10.0 / R1.5 |
25 |
100 |
10 |
| SCW100-10204 |
10.0 / R2 |
25 |
100 |
10 |
| SCW100-10304 |
10.0 / R3 |
25 |
100 |
10 |
| SCW100-12054 |
12.0 / R0.5 |
30 |
100 |
12 |
| SCW100-12104 |
12.0 / R1 |
30 |
100 |
12 |
| SCW100-12154 |
12.0 / R1.5 |
30 |
100 |
12 |
| SCW100-12204 |
12.0 / R2 |
30 |
100 |
12 |
| SCW100-12304 |
12.0 / R3 |
30 |
100 |
12 |
