SB-4T

Carbide End Mill
SB-4T
SB-4T

Ball Nose End Mills

  • SMG
  • 0.4
  • 30
  • 4
  • HRC55
  • ball nose
  • AlTiN X
  • P
  • M
  • K
  • S
  • H1
Add Inquiry

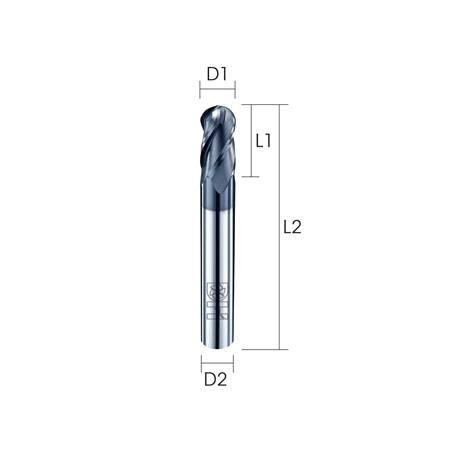

Type No. Diameter Flute Length O.A.L Shank Diameter
D1 L1 L2 D2
SB-0104 1.0 / 0.5R 2 50 4
SB-0154 1.5 / 0.75R 3 50 4
SB-0204 2.0 / 1R 4 50 4
SB-0304 3.0 / 1.5R 6 50 4
SB-0404 4.0 / 2R 8 50 4
SB6D-0304 3.0 / 1.5R 6 50 6
SB6D-0404 2.0 / 2R 8 50 6
SB-0504 5.0 / 2.5R 10 50 6
SB-0604 6.0 / 3R 12 50 6
SB-0804 8.0 / 4R 16 60 8
SB-1004 10.0 / 5R 20 75 10
SB-1204 12.0 / 6R 24 75 12
SB-1404 14.0 / 7R 28 100 16
SB-1604 16.0 / 8R 32 100 16
SB-2004 20.0 / 10R 40 100 20
