SB75/100/150-4T

Carbide End Mill
SB75/100/150-4T
SB75/100/150-4T

Ball Nose End Mills (Long Shank)

  • SMG
  • 0.4
  • 30
  • 4
  • HRC55
  • ball nose
  • AlTiN X
  • P
  • M
  • K
  • S
  • H1
Add Inquiry

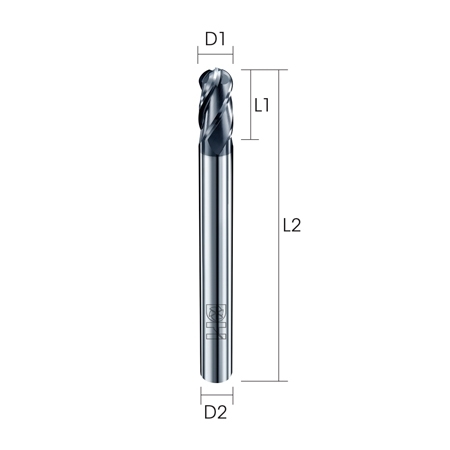

Type No. Diameter Flute Length O.A.L Shank Diameter
D1 L1 L2 D2
SB75-0404 4.0 / 2R 8 75 4
SB75D6-0404 4.0 / 2R 8 75 6
SB75-0504 5.0 / 2.5R 10 75 6
SB75-0604 6.0 / 3R 12 75 6
SB75-0804 8.0 / 4R 16 75 8
SB100-0804 8.0 / 4R 16 100 8
SB100-1004 10.0 / 5R 20 100 10
SB100-1204 12.0 / 6R 24 100 12
SB150-1604 16.0 / 8R 32 150 16
SB150-2004 20.0 / 10R 40 150 20
