Ball Nose End Mills (Long Neck)
| Type No. |
Diameter |
Flute Length |
O.A.L |
Effective Length |
Shank Diameter |

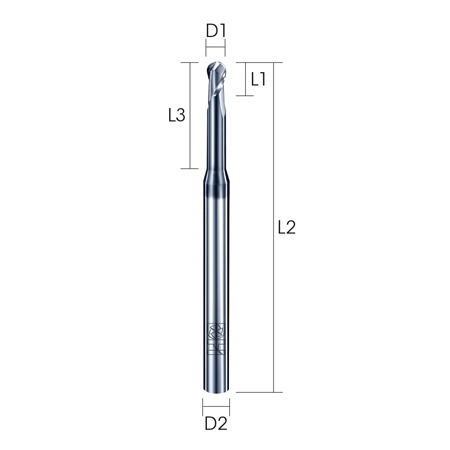

| D1 |
L1 |
L2 |
L3 |
D2 |
| SKB-03012 |
0.3 / 0.15R |
0.4 |
50 |
1 |
4 |
| SKB-03022 |
0.3 / 0.15R |
0.4 |
50 |
2 |
4 |
| SKB-04012 |
0.4 / 0.2R |
0.6 |
50 |
1 |
4 |
| SKB-04022 |
0.4 / 0.2R |
0.6 |
50 |
2 |
4 |
| SKB-04032 |
0.2 / 0.2R |
0.6 |
50 |
3 |
4 |
| SKB-04042 |
0.2 / 0.2R |
0.6 |
50 |
4 |
4 |
| SKB-04052 |
0.2 / 0.2R |
0.6 |
50 |
5 |
4 |
| SKB-05022 |
0.5 / 0.25R |
0.7 |
50 |
2 |
4 |
| SKB-05042 |
0.5 / 0.25R |
0.7 |
50 |
4 |
4 |
| SKB-05062 |
0.5 / 0.25R |
0.7 |
50 |
6 |
4 |
| SKB-05082 |
0.5 / 0.25R |
0.7 |
50 |
8 |
4 |
| SKB-06022 |
0.6 / 0.3R |
0.9 |
50 |
2 |
4 |
| SKB-06042 |
0.6 / 0.3R |
0.9 |
50 |
4 |
4 |
| SBN-06062 |
0.6 / 0.3R |
0.9 |
50 |
6 |
4 |
| SKB-06082 |
0.6 / 0.3R |
0.9 |
50 |
8 |
4 |
| SKB-08042 |
0.8 / 0.4R |
1.2 |
50 |
4 |
4 |
| SKB-08062 |
0.8 / 0.4R |
1.2 |
50 |
6 |
4 |
| SKB-08082 |
0.8 / 0.4R |
1.2 |
50 |
8 |
4 |
| SKB-10042 |
1.0 / 0.5R |
1.5 |
50 |
4 |
4 |
| SKB-10062 |
1.0 / 0.5R |
0.4 |
50 |
6 |
4 |
| SKB-10082 |
1.0 / 0.5R |
1.5 |
50 |
8 |
4 |
| SKB-10102 |
1.0 / 0.5R |
1.5 |
50 |
10 |
4 |
| SKB-10122 |
1.0 / 0.5R |
1.5 |
50 |
12 |
4 |
| SKB-10162 |
1.0 / 0.5R |
0.4 |
50 |
16 |
4 |
| SKB-12062 |
1.2 / 0.6R |
1.8 |
50 |
6 |
4 |
| SKB-12082 |
1.2 / 0.6R |
1.8 |
50 |
8 |
4 |
| SKB-12102 |
1.2 / 0.6R |
1.8 |
50 |
10 |
4 |
| SKB-12122 |
1.2 / 0.6R |
1.8 |
50 |
12 |
4 |
| SKB-14062 |
1.4 / 0.7R |
2.1 |
50 |
6 |
4 |
| SKB-14082 |
1.4 / 0.7R |
2.1 |
50 |
8 |
4 |
| SKB-14102 |
1.4 / 0.7R |
2.1 |
50 |
10 |
4 |
| SKB-14122 |
1.4 / 0.7R |
2.1 |
50 |
12 |
4 |
| SKB-14162 |
1.4 / 0.7R |
2.1 |
50 |
16 |
4 |
| SKB-15042 |
1.5 / 0.75R |
2.3 |
50 |
4 |
4 |
| SKB-15062 |
1.5 / 0.75R |
2.3 |
50 |
6 |
4 |
| SKB-15082 |
1.5 / 0.75R |
2.3 |
50 |
8 |
4 |
| SKB-15102 |
1.5 / 0.75R |
2.3 |
50 |
10 |
4 |
| SKB-15122 |
1.5 / 0.75R |
2.3 |
50 |
12 |
4 |
| SKB-15142 |
1.5 / 0.75R |
2.3 |
50 |
14 |
4 |
| SKB-15162 |
1.5 / 0.75R |
2.3 |
50 |
16 |
4 |
| SKB-15202 |
1.5 / 0.75R |
2.3 |
60 |
20 |
4 |
| SKB-16082 |
1.6 / 0.8R |
2.4 |
50 |
8 |
4 |
| SKB-16102 |
1.6 / 0.8R |
2.4 |
50 |
10 |
4 |
| SKB-16122 |
1.6 / 0.8R |
2.4 |
50 |
12 |
4 |
| SKB-16162 |
1.6 / 0.8R |
2.4 |
50 |
16 |
4 |
| SKB-16202 |
1.6 / 0.8R |
2.4 |
60 |
20 |
4 |
| SKB-18082 |
1.8 / 0.9R |
2.7 |
50 |
8 |
4 |
| SKB-18122 |
1.8 / 0.9R |
2.7 |
50 |
12 |
4 |
| SKB-18162 |
1.8 / 0.9R |
2.7 |
50 |
16 |
4 |
| SKB-18202 |
1.8 / 0.9R |
2.7 |
60 |
20 |
4 |
| SKB-20062 |
2.0 / 1R |
3.0 |
50 |
6 |
4 |
| SKB-20082 |
2.0 / 1R |
3.0 |
50 |
8 |
4 |
| SKB-20102 |
2.0 / 1R |
3.0 |
50 |
10 |
4 |
| SKB-20122 |
2.0 / 1R |
3.0 |
50 |
12 |
4 |
| SKB-20142 |
2.0 / 1R |
3.0 |
50 |
14 |
4 |
| SKB-20162 |
2.0 / 1R |
3.0 |
50 |
16 |
4 |
| SKB-20202 |
2.0 / 1R |
3.0 |
60 |
20 |
4 |
| SKB-25082 |
2.5 / 1.25R |
4.5 |
50 |
8 |
4 |
| SKB-25102 |
2.5 / 1.25R |
4.5 |
50 |
10 |
4 |
| SKB-25122 |
2.5 / 1.25R |
4.5 |
50 |
12 |
4 |
| SKB-25162 |
2.5 / 1.25R |
4.5 |
50 |
16 |
4 |
| SKB-30082 |
3.0 / 1.5R |
4.5 |
50 |
8 |
4 |
| SKB-30102 |
3.0 / 1.5R |
4.5 |
50 |
10 |
4 |
| SKB-30122 |
3.0 / 1.5R |
4.5 |
50 |
12 |
4 |
| SKB-30162 |
3.0 / 1.5R |
4.5 |
50 |
16 |
4 |
| SKB-30202 |
3.0 / 1.5R |
4.5 |
60 |
20 |
4 |
