UB75/100/150-2T
Carbide End Mill
Ball Nose End Mills (Long Shank)
| Type No. |
Diameter |
Flute Length |
O.A.L |
Shank Diameter |

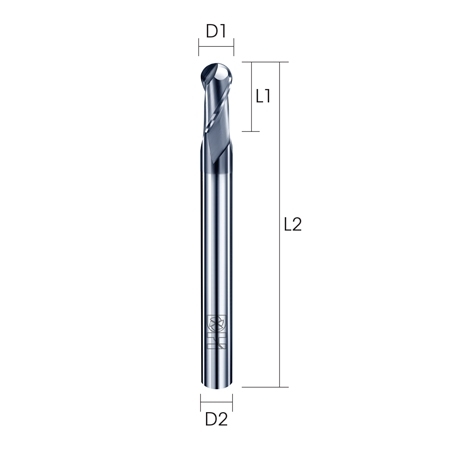

| D1 |
L1 |
L2 |
D2 |
| UB75-0102 |
1.0 / 0.5R |
2 |
75 |
4 |
| UB75-0152 |
1.5 / 0.75R |
3 |
75 |
4 |
| UB75-0202 |
2.0 / 1R |
4 |
75 |
4 |
| UB75-0302 |
3.0 / 1.5R |
6 |
75 |
4 |
| UB75-0402 |
4.0 / 2R |
8 |
75 |
4 |
| UB75D6-0302 |
3.0 / 1.5R |
6 |
75 |
6 |
| UB75D6-0402 |
4.0 / 2R |
8 |
75 |
6 |
| UB75D6-0502 |
5.0 / 2.5R |
10 |
75 |
6 |
| UB75-0602 |
6.0 / 3R |
12 |
75 |
6 |
| UB75-0802 |
8.0 / 4R |
16 |
75 |
8 |
| UB100-0802 |
8.0 / 4R |
16 |
100 |
8 |
| UB100-1002 |
10.0 / 5R |
20 |
100 |
10 |
| UB100-1202 |
12.0 / 6R |
24 |
100 |
12 |
| UB150-1402 |
14.0 / 7R |
28 |
150 |
16 |
| UB150-1602 |
16.0 / 8R |
32 |
150 |
16 |
| UB150-2002 |
20.0 / 10R |
40 |
150 |
20 |
