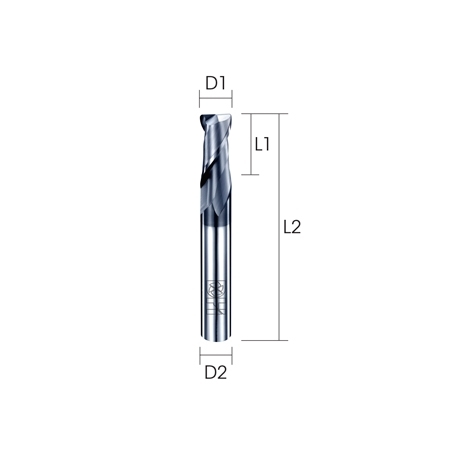

| Type No. |
Diameter |
Flute Length |
O.A.L |
Shank Diameter |
| D1 |
L1 |
L2 |
D2 |
| UCV-01022 |
1.0 / R0.2 |
3 |
50 |
4 |
| UCV-01032 |
1.0 / R0.3 |
3 |
50 |
4 |
| UCV-015022 |
1.5 / R0.2 |
4 |
50 |
4 |
| UCV-015032 |
1.5 / R0.3 |
4 |
50 |
4 |
| UCV-02022 |
2.0 / R0.2 |
6 |
50 |
4 |
| UCV-02032 |
2.0 / R0.3 |
6 |
50 |
4 |
| UCV-02052 |
2.0 / R0.5 |
6 |
50 |
4 |
| UCV-025022 |
2.5 / R0.2 |
7 |
50 |
4 |
| UCV-025032 |
2.5 / R0.3 |
7 |
50 |
4 |
| UCV-025052 |
2.5 / R0.5 |
7 |
50 |
4 |
| UCV-03022 |
3.0 / R0.2 |
8 |
50 |
4 |
| UCV-03032 |
3.0 / R0.3 |
8 |
50 |
4 |
| UCV-03052 |
3.0 / R0.5 |
8 |
50 |
4 |
| UCV-03102 |
3.0 / R1 |
8 |
50 |
4 |
| UCV-04022 |
4.0 / R0.2 |
10 |
50 |
4 |
| UCV-04032 |
4.0 / R0.3 |
10 |
50 |
4 |
| UCV-04052 |
4.0 / R0.5 |
10 |
50 |
4 |
| UCV-04102 |
4.0 / R1 |
10 |
50 |
4 |
| UCV-04152 |
4.0 / R1.5 |
10 |
50 |
4 |
| UCV-05022 |
5.0 / R0.2 |
13 |
50 |
6 |
| UCV-05032 |
5.0 / R0.3 |
13 |
50 |
6 |
| UCV-05052 |
5.0 / R0.5 |
13 |
50 |
6 |
| UCV-05102 |
5.0 / R1 |
13 |
50 |
6 |
| UCV-06022 |
6.0 / R0.2 |
15 |
50 |
6 |
| UCV-06032 |
6.0 / R0.3 |
15 |
50 |
6 |
| UCV-06052 |
6.0 / R0.5 |
15 |
50 |
6 |
| UCV-06102 |
6.0 / R1 |
15 |
50 |
6 |
| UCV-06152 |
6.0 / R1.5 |
15 |
50 |
6 |
| UCV-06202 |
6.0 / R2 |
15 |
50 |
6 |
| UCV-08032 |
8.0 / R0.3 |
20 |
60 |
8 |
| UCV-08052 |
8.0 / R0.5 |
20 |
60 |
8 |
| UCV-08102 |
8.0 / R1 |
20 |
60 |
8 |
| UCV-08152 |
8.0 / R1.5 |
20 |
60 |
8 |
| UCV-08202 |
8.0 / R2 |
20 |
60 |
8 |
| UCV-08302 |
8.0 / R3 |
20 |
60 |
8 |
| UCV-10032 |
10.0 / R0.3 |
25 |
75 |
10 |
| UCV-10052 |
10.0 / R0.5 |
25 |
75 |
10 |
| UCV-10102 |
10.0 / R1 |
25 |
75 |
10 |
| UCV-10152 |
10.0 / R1.5 |
25 |
75 |
10 |
| UCV-10202 |
10.0 / R2 |
25 |
75 |
10 |
| UCV-10302 |
10.0 / R3 |
25 |
75 |
10 |
| UCV-12032 |
12.0 / R0.3 |
30 |
75 |
12 |
| UCV-12052 |
12.0 / R0.5 |
30 |
75 |
12 |
| UCV-12102 |
12.0 / R1 |
30 |
75 |
12 |
| UCV-12152 |
12.0 / R1.5 |
30 |
75 |
12 |
| UCV-12202 |
12.0 / R2 |
30 |
75 |
12 |
| UCV-12302 |
12.0 / R3 |
30 |
75 |
12 |
