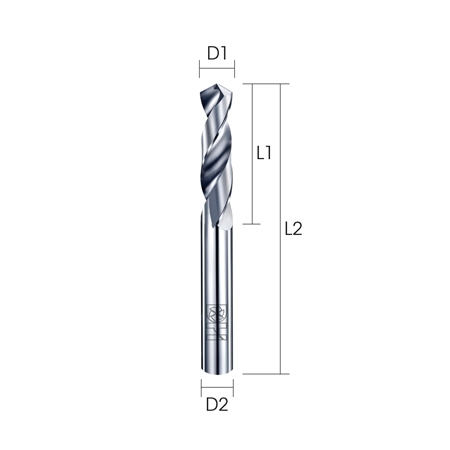

| Type No. |
Diameter |
Flute Length |
O.A.L |
Shank Diameter |
| D1 |
L1 |
L2 |
D2 |
| MDI-0202 |
2.0 |
12 |
38 |
2.0 |
| MDI-0212 |
2.1 |
12 |
38 |
2.1 |
| MDI-0222 |
2.2 |
13 |
40 |
2.2 |
| MDI-0232 |
2.3 |
13 |
40 |
2.3 |
| MDI-0242 |
2.4 |
14 |
43 |
2.4 |
| MDI-0252 |
2.5 |
14 |
43 |
2.5 |
| MDI-0262 |
2.6 |
14 |
43 |
2.6 |
| MDI-0272 |
2.7 |
16 |
46 |
2.7 |
| MDI-0282 |
2.8 |
16 |
46 |
2.8 |
| MDI-0292 |
2.9 |
16 |
46 |
2.9 |
| MDI-0302 |
3.0 |
16 |
46 |
3.0 |
| MDI-0312 |
3.1 |
18 |
49 |
3.1 |
| MDI-0322 |
3.2 |
18 |
49 |
3.2 |
| MDI-0332 |
3.3 |
18 |
49 |
3.3 |
| MDI-0342 |
3.4 |
20 |
52 |
3.4 |
| MDI-0352 |
3.5 |
20 |
52 |
3.5 |
| MDI-0362 |
3.6 |
20 |
52 |
3.6 |
| MDI-0372 |
3.7 |
20 |
52 |
3.7 |
| MDI-0382 |
3.8 |
22 |
55 |
3.8 |
| MDI-0392 |
3.9 |
22 |
55 |
3.9 |
| MDI-0402 |
4.0 |
22 |
55 |
4.0 |
| MDI-0412 |
4.1 |
22 |
55 |
4.1 |
| MDI-0422 |
4.2 |
22 |
55 |
4.2 |
| MDI-0432 |
4.3 |
24 |
58 |
4.3 |
| MDI-0442 |
4.4 |
24 |
58 |
4.4 |
| MDI-0452 |
4.5 |
24 |
58 |
4.5 |
| MDI-0462 |
4.6 |
24 |
58 |
4.6 |
| MDI-0472 |
4.7 |
24 |
58 |
4.7 |
| MDI-0482 |
4.8 |
26 |
62 |
4.8 |
| MDI-0492 |
4.9 |
26 |
62 |
4.9 |
| MDI-0502 |
5.0 |
26 |
62 |
5.0 |
| MDI-0512 |
5.1 |
26 |
62 |
5.1 |
| MDI-0522 |
5.2 |
26 |
62 |
5.2 |
| MDI-0532 |
5.3 |
26 |
62 |
5.3 |
| MDI-0542 |
5.4 |
28 |
66 |
5.4 |
| MDI-0552 |
5.5 |
28 |
66 |
5.5 |
| MDI-0562 |
5.6 |
28 |
66 |
5.6 |
| MDI-0572 |
5.7 |
28 |
66 |
5.7 |
| MDI-0582 |
5.8 |
28 |
66 |
5.8 |
| MDI-0592 |
5.9 |
28 |
66 |
5.9 |
| MDI-0602 |
6.0 |
28 |
66 |
6.0 |
| MDI-0612 |
6.1 |
31 |
70 |
6.1 |
| MDI-0622 |
6.2 |
31 |
70 |
6.2 |
| MDI-0632 |
6.3 |
31 |
70 |
6.3 |
| MDI-0642 |
6.4 |
31 |
70 |
6.4 |
| MDI-0652 |
6.5 |
31 |
70 |
6.5 |
| MDI-0662 |
6.6 |
31 |
70 |
6.6 |
| MDI-0672 |
6.7 |
31 |
70 |
6.7 |
| MDI-0682 |
6.8 |
34 |
74 |
6.8 |
| MDI-0692 |
6.9 |
34 |
74 |
6.9 |
| MDI-0702 |
7.0 |
34 |
74 |
7.0 |
| MDI-0712 |
7.1 |
34 |
74 |
7.1 |
| MDI-0722 |
7.2 |
34 |
74 |
7.2 |
| MDI-0732 |
7.3 |
34 |
74 |
7.3 |
| MDI-0742 |
7.4 |
34 |
74 |
7.4 |
| MDI-0752 |
7.5 |
34 |
74 |
7.5 |
| MDI-0762 |
7.6 |
37 |
79 |
7.6 |
| MDI-0772 |
7.7 |
37 |
79 |
7.7 |
| MDI-0782 |
7.8 |
37 |
79 |
7.8 |
| MDI-0792 |
7.9 |
37 |
79 |
7.9 |
| MDI-0802 |
8.0 |
37 |
79 |
8.0 |
| MDI-0812 |
8.1 |
37 |
79 |
8.1 |
| MDI-0822 |
8.2 |
37 |
79 |
8.2 |
| MDI-0832 |
8.3 |
37 |
79 |
8.3 |
| MDI-0842 |
8.4 |
37 |
79 |
8.4 |
| MDI-0852 |
8.5 |
37 |
79 |
8.5 |
| MDI-0862 |
8.6 |
40 |
84 |
8.6 |
| MDI-0872 |
8.7 |
40 |
84 |
8.7 |
| MDI-0882 |
8.8 |
40 |
84 |
8.8 |
| MDI-0892 |
8.9 |
40 |
84 |
8.9 |
| MDI-0902 |
9.0 |
40 |
84 |
9.0 |
| MDI-0912 |
9.1 |
40 |
84 |
9.1 |
| MDI-0922 |
9.2 |
40 |
84 |
9.2 |
| MDI-0932 |
9.3 |
40 |
84 |
9.3 |
| MDI-0942 |
9.4 |
40 |
84 |
9.4 |
| MDI-0952 |
9.5 |
40 |
84 |
9.5 |
| MDI-0962 |
9.6 |
43 |
89 |
9.6 |
| MDI-0972 |
9.7 |
43 |
89 |
9.7 |
| MDI-0982 |
9.8 |
43 |
89 |
9.8 |
| MDI-0992 |
9.9 |
43 |
89 |
9.9 |
| MDI-1002 |
10.0 |
43 |
89 |
10.0 |
| MDI-1022 |
10.2 |
43 |
89 |
10.2 |
| MDI-1052 |
10.5 |
43 |
89 |
10.5 |
| MDI-1102 |
11.0 |
47 |
95 |
11.0 |
| MDI-1152 |
11.5 |
47 |
95 |
10.5 |
| MDI-1202 |
12.0 |
51 |
102 |
12.0 |
