Description
Solid carbide end mill with four flutes, it can be up to HRC 48-50, from Ø1 to Ø20.

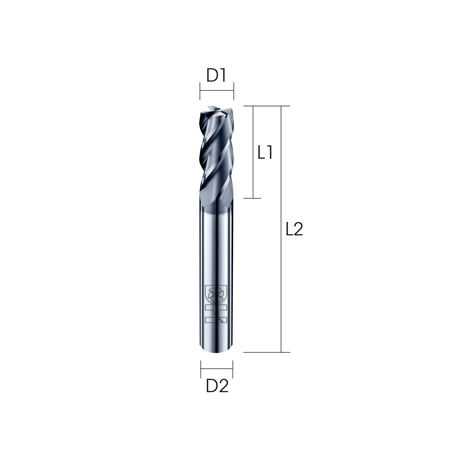

| Type No. | Diameter | Flute Length | O.A.L | Shank Diameter |
|---|---|---|---|---|
| D1 | L1 | L2 | D2 | |
| MQ-0104 | 1.0 | 3 | 50 | 4 |
| MQ-0154 | 1.5 | 4 | 50 | 4 |
| MQ-0204 | 2.0 | 6 | 50 | 4 |
| MQ-0254 | 2.5 | 7 | 50 | 4 |
| MQ-0304 | 3.0 | 8 | 50 | 4 |
| MQ-0354 | 3.5 | 10 | 50 | 4 |
| MQ-0404 | 4.0 | 11 | 50 | 4 |
| MQ-0454 | 4.5 | 12 | 50 | 6 |
| MQ-0504 | 5.0 | 14 | 50 | 6 |
| MQ-0554 | 5.5 | 16 | 50 | 6 |
| MQ-0604 | 6.0 | 16 | 50 | 6 |
| MQ-0654 | 6.5 | 18 | 60 | 8 |
| MQ-0704 | 7.0 | 18 | 60 | 8 |
| MQ-0754 | 7.5 | 20 | 60 | 8 |
| MQ-0804 | 8.0 | 20 | 60 | 8 |
| MQ-0854 | 8.5 | 22 | 75 | 10 |
| MQ-0904 | 9.0 | 22 | 75 | 10 |
| MQ-0954 | 9.5 | 25 | 75 | 10 |
| MQ-1004 | 10.0 | 30 | 75 | 10 |
| MQ-1054 | 10.5 | 28 | 75 | 12 |
| MQ-1104 | 11.0 | 28 | 75 | 12 |
| MQ-1154 | 11.5 | 30 | 75 | 12 |
| MQ-1204 | 12.0 | 30 | 75 | 12 |
| MQ-1304 | 13.0 | 40 | 100 | 16 |
| MQ-1404 | 14.0 | 40 | 100 | 16 |
| MQ-1504 | 15.0 | 40 | 100 | 16 |
| MQ-1604 | 16.0 | 40 | 100 | 16 |
| MQ-2004 | 20.0 | 40 | 100 | 20 |
